SEALPAC


SEALPAC packaging systems operate successfully worldwide. As an experienced precision company, we bring the expertise of our production directly into your production. Our traysealers and thermoformers comply with the quality standard Made in Germany. Whether it's the InsideCut Contour Cut, the Rapid Air Forming System or the Kinetics Central Close System - the list of automation innovations we've invented is long. If it is really true that the better is always the enemy of the good, then we are happy to confess to this maxim, which for us is both aspiration and motivation. Because our goals can not be measured in numbers, not in how many of our plants are in use in how many countries, or whether our company generates more than others. After all, we do not want to be the biggest in the market, but the best - especially for you.

Traysealers

A-Series

PRODUCT BENEFITS

  • Servo controlled film transport

  • Various in-feed systems for all types of trays

  • Pneumatic tooling quick exchange system; no hand tools required

  • Tip-up protection covers

  • Separate channels for vacuum and gas

  • Touch screen panel with 50 programmes

  • Secure tray guidance in all sequential stages

  • Trouble-free integration in existing production lines

  • Interface for external communication

  • High sealing pressure

  • Proven SEALPAC InsideCut sealing

  • Wash-down stainless steel frames

  • Self-draining hygienic construction

  • IP 65 rating

​



SEALPAC A4max

Technical details

  • Average Output
    Sealing Only: 14 cycles / 28 trays
    MAP: 12 cycles / 24 trays
    TraySkin: 7 cycles / 14 trays

  • Air pressure: min. 6 bar

  • Connection values: 3 x 400/230V+N+E - max. 8 kW

​

SEALPAC A5max

Technical details

  • Average Output
    Sealing Only: 14 cycles / 84 trays
    MAP: 12 cycles / 72 trays
    TraySkin: 7 cycles / 42 trays

  • Air pressure: min. 6 bar

  • Connection values: 3 x 400/230V+N+E - max. 8 kW

​

SEALPAC A6max

Technical details

  • Average Output
    Sealing Only: 18 cycles / 144 trays
    MAP: 15 cycles / 120 trays
    TraySkin: 8 cycles / 64 trays

  • Air pressure: min. 6 bar

  • Connection values: 3 x 400/230V+N+E - max. 12 kW

​

SEALPAC A7max

Technical details

  • Average Output
    Sealing Only: 18 cycles / 180 trays
    MAP: 15 cycles / 150 trays
    TraySkin: 8 cycles / 80 trays

  • Air pressure: min. 6 bar

  • Connection values: 3 x 400/230V+N+E - max. 12 kW

​

SEALPAC A8max

Technical details

  • Average Output
    Sealing Only: 18 cycles / 216 trays
    MAP: 15 cycles / 180 trays
    TraySkin: 8 cycles / 96 trays

  • Air pressure: min. 6 bar

  • Connection values: 3 x 400/230V+N+E - max. 12 kW

​

SEALPAC A10max

Technical details

  • Average Output
    Sealing Only: 18 cycles / 252 trays
    MAP: 14 cycles / 196 trays
    TraySkin: 6 cycles / 84 trays

  • Air pressure: min. 6 bar

  • Connection values: 3 x 400/230V+N+E - max. 15 kW

M-Series

PRODUCT BENEFITS

  • Retooling at the touch of a button

  • Panel with touch screen control

  • Compact design

  • SEALPAC MAP+ System

  • Low maintenance costs

  • Individually attached sealing heads

  • Manufactured from non-corrosive materials

​



SEALPAC M1

Technical details

  • Maximum tray height: 100 mm

  • Capacity: up to 6 cycles/minute

  • Machine weight: 320 kg

  • Air pressure: min. 6 bar

  • Electrical: 3 x 400/230V+N+E - max. 1,5 kW

​

SEALPAC MX

Technical details

  • Maximum tray height: 100 mm

  • Capacity: up to 6 cycles/minute

  • Machine weight: 320 kg

  • Air pressure: min. 6 bar

  • Electrical: 3 x 400/230V+N+E - max. 1,5 kW

​

​

Thermoformers

PRO-Series

PRODUCT BENEFITS

  • Smallest footprint

  • Maximized loading area

  • Frame out of one piece

  • Unique modular design

  • Rapid Air Forming

  • Highest value for money

​

​

Technical details

  • Frame length: 3,000 - 6,000 mm

  • Frame height: 960 - 1,025 mm

  • Machine width: 1,300 mm

  • Machine weight: 1,300 - 2,500 kg

  • Film width: max 460 mm

  • Cut-off length: 150 - 400 mm

  • Forming depth: max 105 mm

  • Protection class: IP65

​

Average output for

  • sealing only: 10 strokes/min

  • flexible film vacuum: 8 strokes/min

  • rigid film MAP: 8 strokes/min

  • ShrinkStyle®: 8 strokes/min

  • ThermoSkin®: 7 strokes/min

​

​

​







RE-Series

PRODUCT BENEFITS

  • Rapid Air Forming: better forming quality, corner reinforcement of the package, thinner films possible and faster cycle times due to shorter forming and ventilation times

  • Longer working life: heavy duty construction in stainless steel

  • Minimum wear and maintenance: low maintenance costs

  • Maximum balance: as the die-set is centrally balanced and distribution force is optimized, it can be positioned anywhere in the machine and generates faster processing times

  • More hygiene: angled, easy to clean construction

  • No corners, no edges, no contamination

​

SEALPAC RE-15

Technical details

  • Distance between dies: 1,450-2,090 mm

  • Frame length: 4,000 mm

  • Machine width: 930 mm

  • Film unwind system: reel outside 400 mm

  • Film width: 320 mm

  • Maximum cut off length: 400 mm

  • Maximum draw depth: 120 mm

  • Compressed air: min. 6 bar (90 PSI)

  • Electrical: 3 x 230 V / 400, 50 / 60Hz

  • Cooling water: 60 l / hr(*), 2 bar, max. 25°C

​

SEALPAC RE-20

Technical details

  • Distance between dies: 1,450-2,090 mm, 2,450-3,090 mm, 3,450-4,090 mm

  • Frame length: 4,000, 5,000, 6,000, 7,000, 8,000 mm

  • Machine width: 1,070 mm

  • Film unwind system: reel outside 400 mm

  • Film width: up to 460 mm

  • Maximum cut off length: 600 mm

  • Maximum draw depth: 120 mm

  • Compressed air: min. 6 bar (90 PSI)

  • Electrical: 3 x 230 V / 400, 50 / 60Hz

  • Cooling water: 80 l / hr(*), 2 bar, max. 25°C

​

SEALPAC RE-25

Technical details

  • Distance between dies: 1,450-2,090 mm, 2,450-3,090 mm, 3,450-4,090 mm, 4,450-5,090 mm

  • Frame length: depending on machine model

  • Machine width: depending on machine model

  • Film unwind system: reel outside 400-1,000 mm

  • Film width: 320-650 mm

  • Maximum cut off length: 800 mm

  • Maximum draw depth: up to 180 mm

  • Compressed air: min. 6 bar (90 PSI)

  • Electrical: 3 x 230 V / 400, 50 / 60Hz

  • Cooling water: 200 l / hr(*), 2 bar, max. 25°C

​

SEALPAC RE-30

Technical details

  • Distance between dies: 1,450-2,090 mm, 2,450-3,090 mm, 3,450-4,090 mm, 4,450-5,090 mm

  • Frame length: depending on machine model

  • Machine width: depending on machine model

  • Film unwind system: reel outside 400-1,000 mm

  • Film width: 305-650 mm

  • Maximum cut off length: 800 mm

  • Maximum draw depth: up to 200 mm

  • Compressed air: min. 6 bar (90 PSI)

  • Electrical: 3 x 230 V / 400, 50 / 60Hz

  • Cooling water: 240 l / hr(*), 2 bar, max. 25°C

Denesters

Sealpac Denesters

​

AS-LS Denester

SEALPAC’s AS-LS linear denester is perfectly suited to high-output applications. This denester, which is placed over the in-feed conveyor for reduced footprint, smoothly positions a series of trays onto the conveyor by means of suction cups. It can be used for different tray formats by simply exchanging the mask and suction unit.

Benefits at a glance

  • High speed and output

  • Suitable for all SEALPAC Amax-series traysealers

  • Large magazine

  • Reduced footprint

  • Servo-driven for optimal control

​

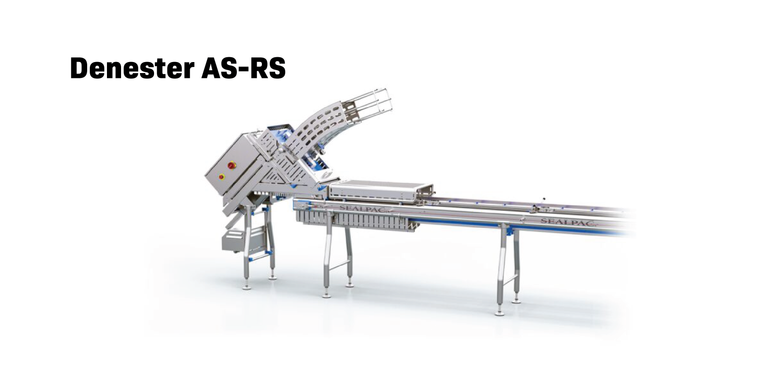

AS-RS servo diagonal denester
SEALPAC’s AS-RS diagonal denester is perfectly suited for small to medium outputs. Due to its magazine with 1,100 mm stack height, and optionally supplied with two magazines, significant numbers of trays are smoothly positioned onto the in-feed conveyor.

Benefits at a glance

  • Extremely efficient for small to medium outputs

  • Optional with two magazines

  • Reduced footprint

  • Servo-driven for optimal control

  • Special version for flat cardboard carriers

​

MA servo magazine denester
SEALPAC’s MA magazine denester is perfectly suited to high-output applications. Due to its extra-large magazine with 1,000 mm stack height, large numbers of trays are smoothly positioned onto the in-feed conveyor each cycle. Also available in double lane, the MA denester is able to process up to two different tray formats at the same time.

Benefits at a glance

  • Highest speed and output

  • Suitable for all SEALPAC Amax-series traysealers

  • Extra-large magazine

  • Optional: magazines for different tray sizes

  • Servo-driven for optimal control

​

MA-S servo magazine denester

SEALPAC’s MA-S series of compact magazine denesters requires no technical connections other than electrical power. Equipped with servo drive, they achieve an unparalleled denesting result. The MA-S denesters have been designed according to the latest standards in technology and hygiene. Due to their C-shape, each denester is easily integrated in new and existing lines.

Benefits at a glance

  • Highest speed and output

  • Suitable for all SEALPAC Amax-series traysealers

  • C-shape allows for easy integration

  • Servo-driven for optimal control

  • Compact, hygienic design with easy access

Lidding Machines

Sealpac Lidding Machines

​

MD servo magazine lidding system

SEALPAC’s MD magazine lidding system is perfectly suited to high-output applications. Due to its extra-large magazine with 1,000 mm stack height, large numbers of lids are smoothly placed on the trays each cycle. Also available in double lane, the MD lidding system is able to process up to two different lid formats at the same time.

Benefits at a glance

  • Highest speed and output

  • Suitable for all SEALPAC Amax-series traysealers

  • Extra-large magazine

  • Optional: magazines for different lid sizes

  • Servo-driven for optimal control

​

​

MD-S servo magazine lidding system

Our compact MD-S lid applicators require no technical connections other than electrical power. Equipped with servo drive, they achieve an unparalleled lidding result. Each model is easily integrated in new and existing lines.

Benefits at a glance

  • Fully electric

  • Servo-driven for optimal control

  • Ergonomic covers allow for easy access

  • Hygienic design
